Waterproofing Joints

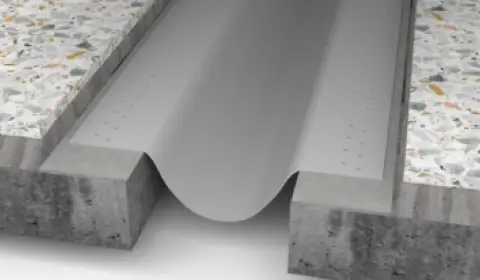

اليك صوره توضح قطاع ضمن انظمة فواصل العزل المائي من ichem for expansion joints

Waterproofing Joints

Waterproofing Joints from iChem – Complete Protection Against Water Leakage in Concrete Structures

Waterproofing joints are flexible systems used to prevent water leakage through concrete joints, especially in areas exposed to high water pressure or constant moisture such as foundations, water tanks, and tunnels.
Installing waterproofing joints correctly is a key part of any effective waterproofing system, as it preserves the durability of the concrete and prevents deterioration over time.

Quick Definition
Waterproofing joints are systems installed within or over construction joints in concrete to prevent the penetration of water and moisture, helping maintain the structural integrity and extend the life of the concrete.

The Importance of Waterproofing Joints in Construction

In concrete structures, water leakage can occur due to several factors such as:

  • Thermal expansion and temperature variations

  • Groundwater pressure or rainfall

  • Interfaces between different concrete casting stages

Without proper waterproofing joints, this can lead to:

  • Corrosion of reinforcement steel

  • Cracks in concrete

  • Reduced structural load-bearing capacity

Waterproofing joints act as an intelligent barrier that prevents water and moisture infiltration, ensuring that concrete remains durable and stable for many years.

Types of Waterproofing Joints

The type of joint is chosen based on the project requirements and the level of water exposure. The most commonly used types include:

1. PVC Waterstops

The most widely used type in water tanks, tunnels, and treatment plants.
They offer high flexibility, excellent resistance to water and chemicals, and are easy to install during concrete casting.

2. Rubber Waterstops

Made from synthetic rubber (TPE or Neoprene), these provide superior flexibility and resistance to vibration and movement.
Ideal for industrial buildings and bridges that undergo frequent load changes.

3. Hydrophilic Waterstops

Smart sealing systems that expand upon contact with water, automatically filling gaps and ensuring tight sealing.
Perfect for foundations and precision concrete joints.

4. Joint Sealants

Materials such as polyurethane or bitumen-based sealants are used for horizontal or exposed joints that require additional waterproofing protection.

Applications of Waterproofing Joints

Waterproofing joint systems are used across a wide range of concrete structures, including:

  • Foundations and basements

  • Water tanks and treatment plants

  • Tunnels and underground parking

  • Exposed roofs and concrete walkways

  • Industrial and coastal structures

In every case, the type of joint and material is carefully selected based on engineering analysis and the expected water pressure conditions.

iChem’s Solutions for Waterproofing Joints

iChem is one of the leading companies in Egypt and the Middle East, offering high-performance waterproofing joint systems for concrete structures.
The company provides complete integrated solutions that include:

  • System design tailored to project specifications

  • Supply of premium, internationally certified materials

  • Implementation under expert engineering supervision to ensure long-lasting performance

Why Choose iChem?

  • Extensive experience in industrial and structural waterproofing

  • Use of premium-quality materials such as PVC, Rubber, and Hydrophilic Waterstops

  • Compatibility with bituminous and polyurethane waterproofing systems

  • Technical and engineering support from experienced waterproofing specialists

🧱 At iChem, we don’t just supply materials — we deliver complete protection systems that extend your project’s lifespan and structural durability.
