i322®
Floor Expansion Joint Systems
Description

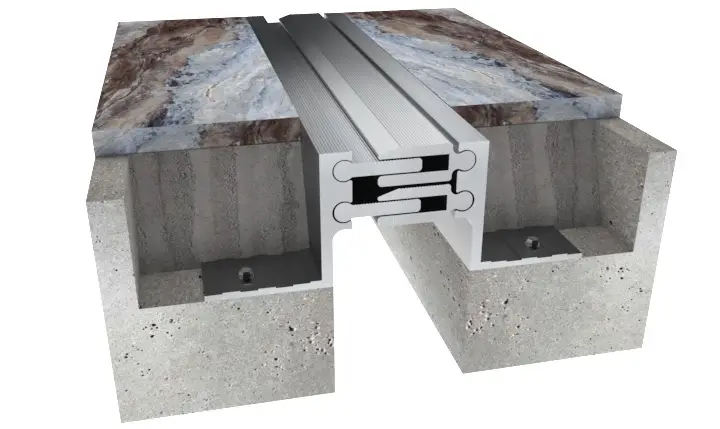

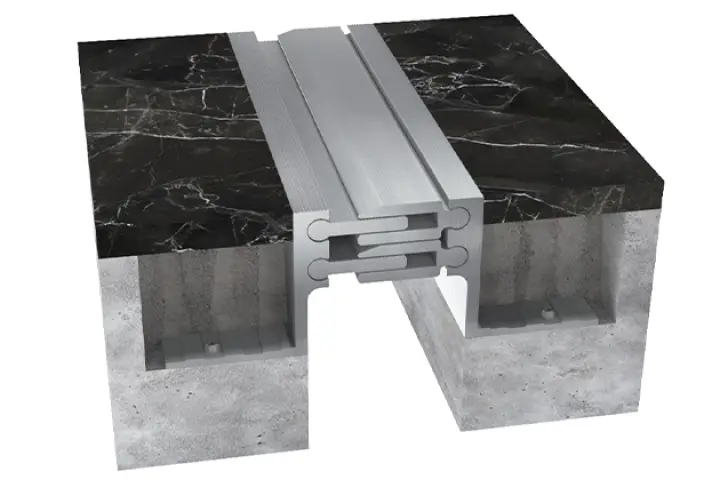

The i322® a System is a recessed mount floor expansion joint system. can coordinate with your desired flooring finish
I322 Expansion Joint Technical Data Sheet
Install Condition: Floor/Floor, Floor/wall.
Joint width: 38-50mm.
Recessed modular frames for minimal sight line.
Adaptable to many finishes, including ceramic tile, marble, stone, vinyl tile and carpet.
Seamlessly integrates with wall and ceiling systems.
Snap-fit design for easy on site assembly.
Easy to clean flush seals.
No dirt or water traps.
Optional vapor barrier Optional fire rated.
Mill finish aluminum.
I322 Expansion Joint Installation Instructions
i322 CAD Drawing
i322 C-CAD Drawing
i322-25 Technical CAD Document
i322-50 CAD PDF
i322-75 CAD PDF
i322 C-25I CAD PDF
i322 C-50 Technical CAD PDF
i322 C-75 Technical CAD PDF
